What is on TempoTec V3 Blaze

TempoTec V3 Blaze - Portable DAP, HIFI Music Player, Digital Audio Player, MP3 Player. Dual AK4493SEQ DAC chip, 2.4GHz WiFi,Two-Way Bluetooth 5.1, supports DSD512, MQA 16X full decoding, TIDAL, qobuz

  • Output power: 825mW+825mW/4.4mm@32Ω
  • High performance digital circuit
  • Pyramid analog circuit
  • Stream media App: TIDAL，Qobuz
  • DAC chip: 2*AK4493SEQ
  • Wireless: Two-way Bluetooth 5.1, 2.4GHz WiFi, HIBYLINK, AirPlay, DLNA
  • Audio sources: Micro SD Audio, LDAC&AAC  APTX, USB DAC
  • Supported formats: DSD512, MQA 16X, DXD, PCM 32bit/768kHz
  • Battery capacity: 3500mAh
  • Size: 10cm x 6.5cm x 1.7cm

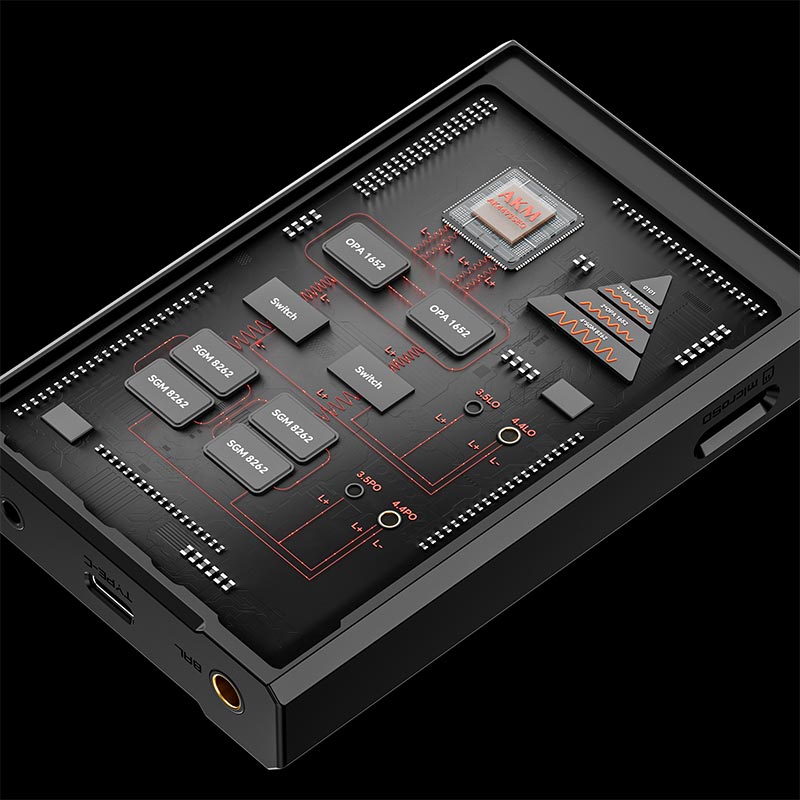

Pyramid analog amplifier circuit for each channel

The independent design of the single channel provides better separation and creates a better sound stage for the headphone system.

  • Digital to Analog Converter: 2*AK4493SEQ (One for each channel)
  • LPF: 2*OPA1652(One for each channel)
  • Operational amplifier chip: 4* SGM8262(two for each channel)

powerful headphone amplifier circuit

The high-fidelity design circuit of 4 sets of 8 headphone amplifier circuit is adopted, so that output power of 4.4mm can reach to 1650MW/@32Ω. Easily get all kinds of headphones.

  • LPF chip: OPA1652 for each channel to remove high frequency noise e.g., switching power supply noise, digital interference
  • OP-Amp chip: two SGM8262 for each channel to enhance filtered audio signals through amplification, impedance matching, and noise suppression

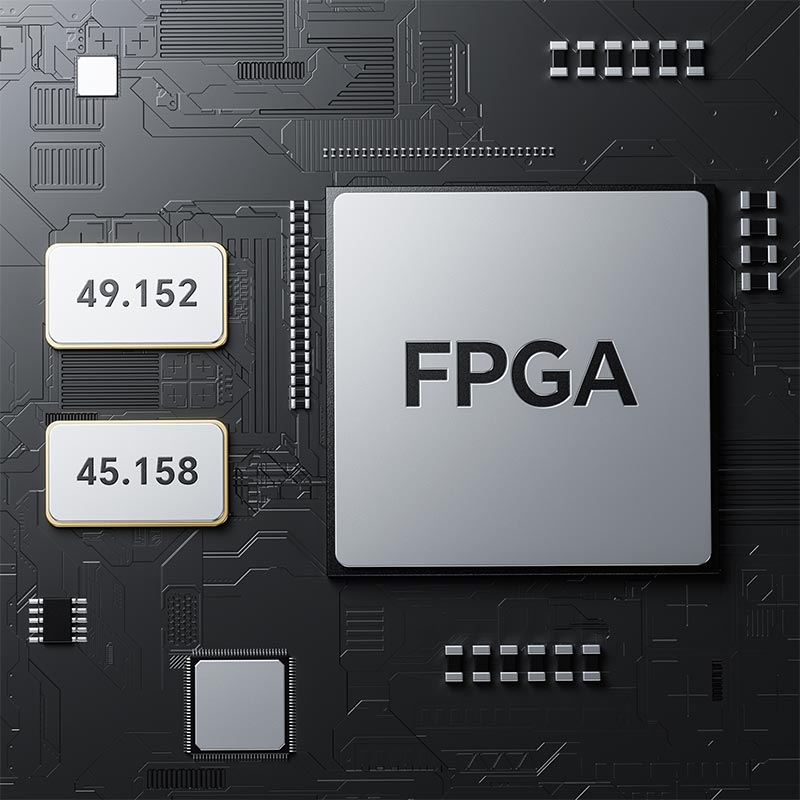

FPGA high performance digital circuit

Professional FPGA digital technology, matched with a custom-made dual crystal oscillator system with high precision and low phase noise, provides an ultra high quality digital source for the system.

Processor of V3 Blaze

X1600E - the high-performance, low-power consumption embedded processor is adopted on V3 Blaze.

High fidelity audio system

Based on the processing ability of main processor, V3 Blaze has an excellent customed pure music system of the sound, and accurate, fast and high performance digital clock source for signal decoding.

  • PO output port: V3 blaze has both 4.4mm balance and 3.5mm output to match with earphones and headphones with different jack.
  • LINE OUT: the 4.4mm and 3.5mm ports can act as LINE OUT port via software switch.
  • USB DAC mode: Connect V3 Blaze with mobile phone through cable like USBC to USBC OTG cable, USBC to lightening cable, or with computers with USBC/USBA to USBC cable.
  • USB Audio source: V3 Blaze works as a audio source by connect to other USB DAC such as TempoTec Sonata BHD, Sonata BHD Pro, TempoTec March V- M5, TempoTec March III - M3.

Audio Formats supported by V3 Blaze

  • DSD: up to DSD512 natvie
  • PCM: up to 32Bit/768kHz
  • MQA: Full unfold MQA 16X

Enjoy Music wireless and unlimited

  • Two way Bluetooth 5.1
  • 2.4GHz WiFi
  • DLNA
  • AirPlay
  • HiByLink

HiBy Link mobile phone remote control

HiByLink feature allows you easily scan and control to play, pause, stop music, increase, decrease the volume and switch tracks via your mobile phone through the HiBy link feature built-in HiByMusic APP.

The BT protocol on V3 Blaze

V3 Blaze work as either Bluetooth DAC or Bluetooth transmitter, the protocol it supports as following:

  • LDAC
  • AAC
  • aptX
  • UAT
  • SBC

AirPlay

Pair apple device such as iPhone, iPad and MAC OS with V3 Blaze via AirPlay.

Make sure V3 Blaze and Apple device are in the same wifi network.

PO and LO mode

V3 Blaze has both 4.4mm and 3.5mm port which can also work as line out port.

  • PO mode: digital audio signal passes to AK4493 to generate analog audio signal ,then goes to OPA1652 and SGM8262 to get purification, amplification, impedance matching, and noise suppression and output to either 4.4mm BAL or 3.5mm SE port
  • LO mode: the analog audio signal direct goes to active speakers after purification by OPA1652.

Battery of V3 Blaze

The battery capacity of V3 Blaze is up to 3500mAh.

Enjoy music continuously the whole day.

RGB indicator

  • Light off: standby
  • Red: Charging
  • Light blue: But playing while connected
  • Yellow: Playing SR ≤48kHz
  • Cyan: Playing SR 88.2kHz~192kHz
  • Orange:  Playing SR≥352.5kHz
  • White: DSD64~DSD512
  • Blue:  MQA

Size and weight

Dimension: 10cm x 6.5cm x1.7cm
Weight: 166.5g
Package weight: 254.5g

Package list

  • Variations V3 Blaze*1
  • Protective case*1
  • USBC to USBC OTG cable*1
  • USB A to USB C cable*1
  • Impedance adapter 75Ω with3.5mm jack *1
  • User manual*1
  • QC certificate*1
  • Warranty card*1

TempoTec

TempoTec was co-founded by a group of people who love music.

The goal is to enable those who love music to enjoy the real sound. Since TempoTec launched the first Fantasia which is a PC decoding system using I2S to transmit audio signal in 2005, TempoTec has continuously released Fantasia series and Serenade series for PC HIFI, Sonata series for mobile phone, March series which is wireless HIFI for PC and mobile phone, and High-end Waltz series.

 Hearing the real sound is TempoTec's unchanged pursuit!
